System Pumps

RK2 .75 HP ODP System Pump

RK2 .75 HP ODP System Pump; Pump unions and
pump pads optional

RK2 Systems pumps are a high efficiency, industrial grade pump. Ideal for your aquaculture, public aquaria or general transfer and recirculation needs - RK2 Systems pumps produce excellent flow rates at sufficient pressure (head) to really get the job done. The industrial grade noryl housings are built for long term use. A strainer pot may be attached to facilitate priming in a suction lift application and to strain debris from the inflow.

System pump features include:

Motor Part Number Volts AMPS@115VAC 60Hz. AMPS@230VAC 60Hz. Enclosure Curve PDF
1 HP 41102.301 115/230 13.8 AMPS 6.9 AMPS ODP A System Pump
3/4 HP 41072.301 115/230 10.6 AMPS 5.3 AMPS ODP B
1/2 HP 41052.301 115/230 8.6 AMPS 4.3 AMPS ODP C
1/4 HP High Flow 41022.505 115/230 5.6 AMPS 2.8 AMPS TEFC D
1/4 HP 41022.504 115/230 2.7 AMPS 1.3 AMPS TEFC E
1/8 HP 41012.354 115/230 1.9 AMPS .95 AMPS TEFC F
1/8 HP Energy Max 47012.306 115/230 1.4 AMPS .70 AMPS TEFC G
1.5 HP 41152.304 115/230 16.6 AMPS 8.3 AMPS TEFC H
2 HP 41202.304 115/230 15.76 AMPS 7.88 AMPS TEFC I
System Pump Performance Chart

Super Pro Pumps

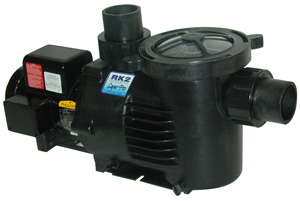

RK2 .5HP Low RPM Superpro Pump

RK2 .5HP Low RPM Superpro Pump

Our Super Pro Series is the pump you need for your higher flow applications. It not only delivers great flow rates at useable heads, but it does so efficiently! You get the safety and convenience of self-priming along with great energy savings. For ease of use, these pumps have a large strainer basket with an easy open Lexan lid. The specially designed lid and clamp ring insure a positive seal with very little o-ring wear.

Super Pro Pump Features:

Super Pro "Low Head" Specifications

60Hz

Motor Part Number Volts Amps @ 115VAC
60Hz.
Amps @ 230VAC
60Hz.
Enclosure RPM
1/4 HP 43022.335 LH 115/230 3.3 Amps 1.7 Amps TEFC 1725
1/3 HP 43032.335 LH 115/230 4.1 Amps 2.1 Amps TEFC 1725
1/2 HP 43052.335 LH 115/230 5.5 Amps 2.8 Amps TEFC 1725
3/4 HP 43072.335 LH 115/230 6.5 Amps 3.3 Amps TEFC 1725
1 HP 43102.335 LH 115/230 8.7 Amps 4.4 Amps TEFC 1725

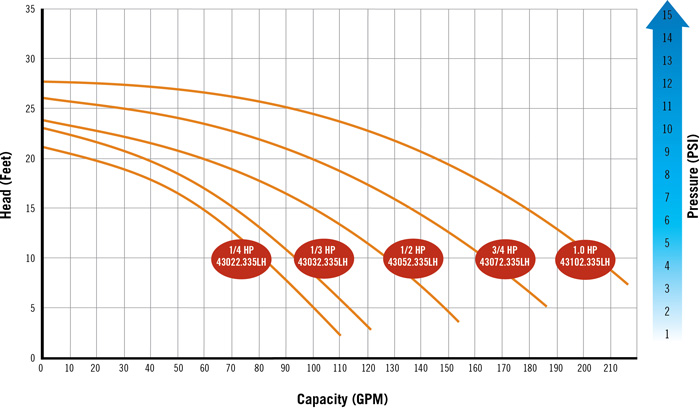

Super Pro System Pump LH

Super Pro "Medium Head" Specifications

60Hz

Motor Part Number Volts Amps @ 115VAC
60Hz.
Amps @ 230VAC
60Hz.
Enclosure RPM
1/2 HP 43052.342 MH 115/230 8.8 Amps 4.4 Amps ODP 3450
3/4 HP 43072.342 MH 115/230 11.2 Amps 5.6 Amps ODP 3450
1 HP 43102.342 MH 115/230 15.8 Amps 7.9 Amps ODP 3450
1.5 HP 43152.342 MH 230   9.2 Amps ODP 3450
2 HP 43202.342 MH 230   10.2 Amps ODP 3450
3 HP 43302.342 MH 230   13.4 Amps ODP 3450

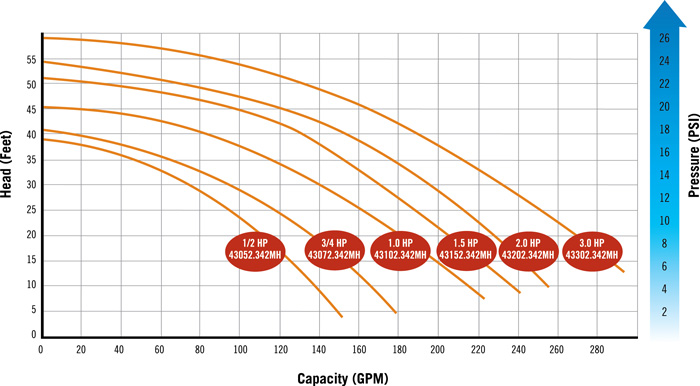

Super Pro System Pump MH
Motor Part Number Volts Amps @ 115VAC
60Hz.
Amps @ 230VAC
60Hz.
Enclosure RPM
5 HP 43502.342 MH 230   17.6 Amps ODP 3450

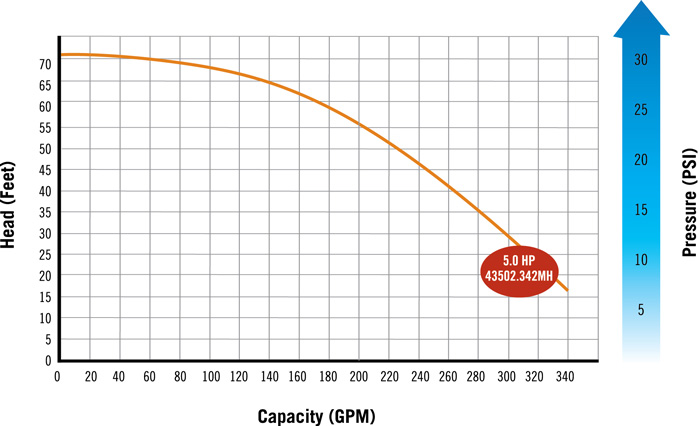

Super Pro System Pump MH

Super Pro "High Head" Specifications

60Hz

Motor Part Number Volts Amps @ 115VAC
60Hz.
Amps @ 230VAC
60Hz.
Enclosure RPM
1 HP 43102.342 HH 115/230 14.8 Amps 7.4 Amps ODP 3450
1.5 HP 43152.342 HH 230   8.6 Amps ODP 3450
2 HP 43202.342 HH 230   9.9 Amps ODP 3450
3 HP 43302.342 HH 230   13.4 Amps ODP 3450

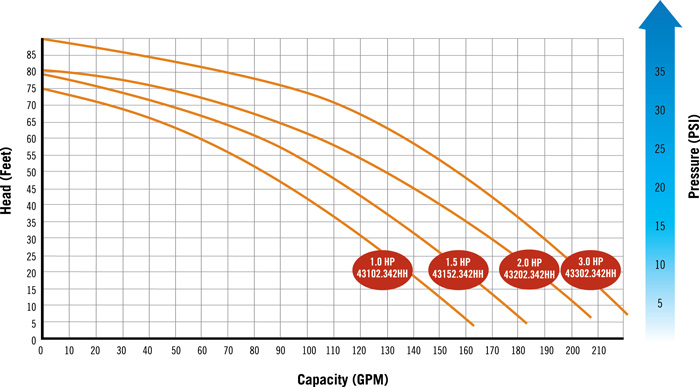

Super Pro System Pump HH

Super Pro Dial-In-Flow-Pumps

Super Pro Dial In Flow 4300

RK2 Super Pro Dial-In-Flow Pump

Now you can get all the advantages of the high quality, self-priming Super Pro pump line, plus you get the flexibility of being able to adjust the flow rate.

You benefit from:

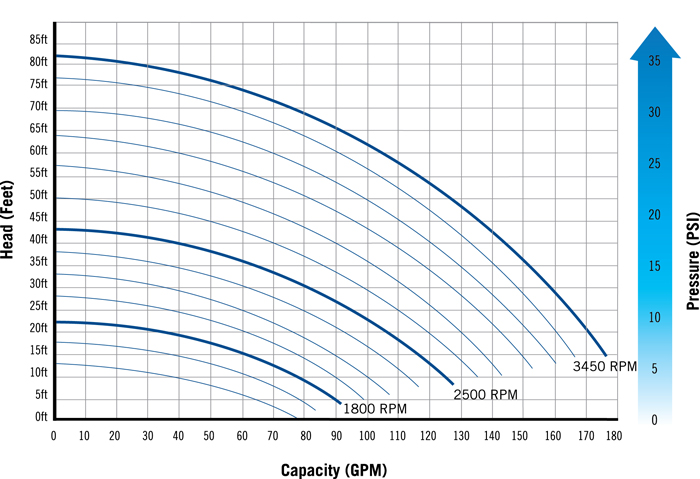

Super Pro Dial In Flow Pump Chart
