XFLO UV Sterilizers - Professional grade equipment for the home aquarist and pond enthusiast

Introducing a new option in UV Sterilization

Looking for a better and more reliable UV option for your backyard pond, water feature, or home aquarium? RK2 is proud to offer our new XFLO UV Sterilizer. Our design team has a combined 60+ years experience and we meticulously worked to create the most user friendly UV solution available while ensuring users a technically sound product they can trust to get the job done right. Whether choosing our XFLO UV Sterilizers with our standard output, three inch diameter model, or our high output five inch diameter model, XFLO UV has the best solution for your specific needs.

Each mirco-organism has its own UV dose or “kill rate”. Determining what micro-organism you are trying to apply UV sterilization to is key to how successful you will be in using a UV Sterilizer. The dose the UV sterilizer will produce is determined by the water flow rate through the sterilizer body and across a specific UV lamp. Accurate information from the manufacturer is a must when operating any UV sterilizer.

XFLO UV Sterilizers Features:

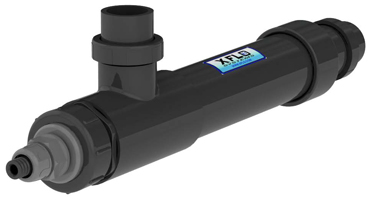

XFL3-40L

XFL3-40L

Low Pressure Standard Output UV Sterilizers

XFLO Model Wattage NO. Lamps/Watts Dia Length Inlet/Outlet Flowrate (30mj/cm2) Flowrate (180mJ/cm2) Rec'd Aquarium Size* (gal.) Rec'd Pond Size** (gal.)
XFL3-18L 18 (1) 18 3” 20 7/8” 1.5 240 GPH 36 GPH 40 1,000
XFL3-25L 25 (1) 25 3” 32 7/8” 1.5 480 GPH 60 GPH 60 2,000
XFL3-40L 40 (1) 40 3” 47 7/8” 1.5 1,020 GPH 168 GPH 150 4,500
* = Aquarium Size based on 180mJ/cm Flow rates and 1 turnover per hour
**= Pond Size Based on 30mJ/cm2 Flow rates and 1 Turnover every 3-4 Hours

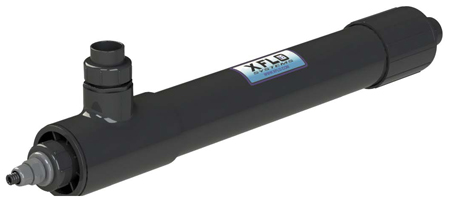

XFL5-80H

XFL5-80H

Low Pressure High Output UV Sterilizers

XFLO Model Wattage NO. Lamps/Watts Dia Length Inlet/Outlet Flowrate (30mj/cm2) Flowrate (180mJ/cm2) Rec'd Aquarium Size* (gal.) Rec'd Pond Size** (gal.)
XFL5-50H 50 (1) 50 5” 34 7/8” 2 1,500 GPH 240 GPH 240 6,000
XFL5-80H 80 (1) 80 5” 49 3/8” 2 2,700 GPH 420 GPH 400 10,000
XFL5-120H 120 (1) 120 5” 61 7/8” 2 3,840 GPH 600 GPH 600 14,000
XFL5-150H 150 (1) 150 5” 78 7/8” 2 6,000 GPH 1,020 GPH 1000 20,000
* = Aquarium Size based on 180mJ/cm Flow rates and 1 turnover per hour
**= Pond Size Based on 30mJ/cm2 Flow rates and 1 Turnover every 3-4 Hours

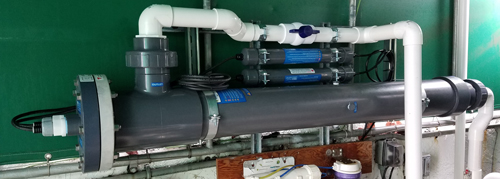

XFL6-300ML

XFL6-300ML

Low Pressure High Output Multi-Lamp UV Sterilizers

XFLO Model Wattage NO. Lamps/Watts Dia Length Inlet/Outlet Flowrate (30mj/cm2) Flowrate (180mJ/cm2) Rec'd Aquarium Size* (gal.) Rec'd Pond Size** (gal.)
XFL6-100ML 100 (2) 50 6” 35” 3 2,580 GPH 420 GPH 400 8,000
XFL6-160ML 160 (2) 80 6” 49 3/4” 3 4,860 GPH 840 GPH 900 17,000
XFL6-240ML 240 (2) 120 6” 62 3/8” 3 6,600 GPH 1,080 GPH 1,100 22,000
XFL6-300ML 300 (2) 150 6” 76 1/2” 3 10,400 GPH 1,740 GPH 1,800 36,000
* = Aquarium Size based on 180mJ/cm Flow rates and 1 turnover per hour
**= Pond Size Based on 30mJ/cm2 Flow rates and 1 Turnover every 3-4 Hours
